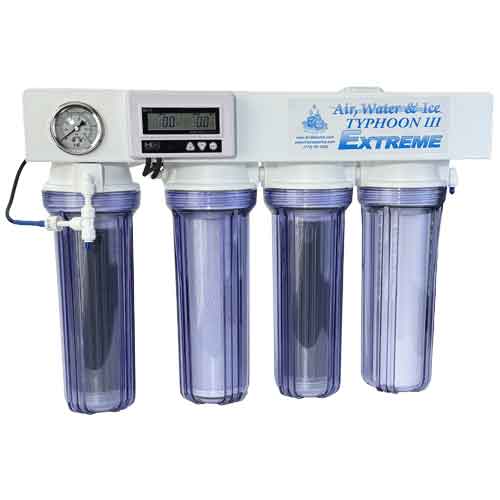

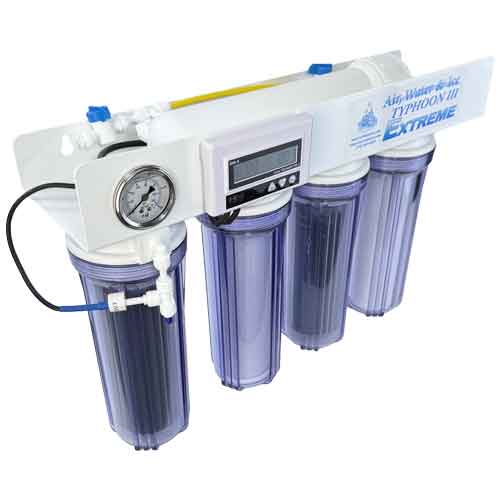

TYPHOON III EXTREME 150 GPD REEFKEEPER RODI

$309.95 $299.95
/
Tax included. Shipping calculated at checkout.
Water Supply Connection :

TYPHOON III EXTREME 150


TYPHOON III EXTREME RODI REEFKEEPER 150 GPD


This Typhoon III EXTREME is a SUPER upgraded version of the basic Typhoon. It is a 5 stage 150 GPD RODI that comes with a higher volume membrane, plus a DI bypass assembly, plus a RO only valve, plus a Senno hand-held TDS Meter, plus a built-in pressure gauge, plus a built-in TDS alarm, plus a dual in-line TDS meter, plus an upgraded catalytic carbon pre-filter, plus a tubing cutter and plus a float valve ($175 in additional value over the Typhoon ).

Every Typhoon and each of the 7,500 of them made since 2001 are all equipped with a Fast Flush Flow restrictor and an ASOV for automatic top off. We introduced the ASOV to reefkeeping in 2001. The Typhoon unit comes pre-assembled with the filters and membrane installed. Your unit is pressure tested with 65 psi water. The filters and membrane are installed the day we ship. You only need to make three plumbing connections and you are done. Just connect to your source water, waste water and then enjoy zero TDS water, Zip, Zero, Zilch, Nada. NO TDS.



This is the famous Typhoon III on steroids, bigger better, and with even more features!



This top of The Line TDS assassin produces up to 150 gallons per day!



The De-ionization filter then reduces the TDS to ZERO!


This EXTREME Unit comes with EVERYTHING included!


WATER SUPPLY CONNECTION OPTIONS.



Standard Features
The Typhoon III  EXTREME ReefKeeping RODI 150 GPD
5 stage with ASOV



Easy to use push-in fittings make installation a snap. 20 years and thousands of reefkeepers later and still no reports of problems. We offer you a complete one frame system which has all the protection you will ever need.



All of our Typhoon machines are equipped with re-usable DI cartridges. The Typhoon is a 5 stage RODI (Reverse Osmosis/De-Ionizing) reefkeeper supplied with a 150 GPD  (TFC) membrane for truly great water quality and production rates. This Typhoon unit comes fully assembled and is equipped will all first class installation hardware, including a sturdy extruded clamp style water supply valve, drain saddle, two in-line ball valves, and 24 feet of 1/4" tubing. We even include the filter wrench. All fittings are push-in, eliminating the need for tools, teflon tape, or glue. Comes with a fast flush flow restrictor to reduce TDS creep and prolong the life of the membrane. This Typhoon III EXTREME is a SUPER upgraded version of the basic Typhoon. It is a 5 stage 150 GPD RODI that comes with a higher volume membrane, plus a DI bypass assembly, plus a RO only valve, plus a Senno hand-held TDS Meter, plus a built-in pressure gauge, plus a built-in TDS alarm, plus a dual in-line TDS meter, plus an upgraded catalytic carbon pre-filter, plus a tubing cutter and plus a float valve ($175 in additional value over the Typhoon ).


The five stages of filtration are as follows:

Stage 1 - Heavy duty, standard industry size 10 micron Poly Pro Sediment filter.

Stage 2 - An activated granular catalytic carbon filter, removing 99% of chlorine and chloramines.

Stage 3 - 1 micron acid washed GEM coconut carbon block filter, that removes the remaining chemicals and chlorine.

Stage 4 - 150 GPD TFC membrane removing up to 98% of TDS (Total Dissolved Solids)

Stage 5 - A full sized, high capacity, re-usable DI cartridge* to bring the TDS down to ZERO.


*This vertical color changing resin in the DI cartridge removes any remaining TDS left by the membrane. As the resin is used, the color changes. Once the color change is complete you simply install a new cartridge or buy our bulk resin and refill it. This deionization nuclear grade resin is a mixed bed DI of both Anion & Cation resins made by ResinTech.

Replacement filter pack (every 6-12 months) : Extreme Typhoon Filter Pack

Replacement membrane (every 2-5 years) : 150 GPD Axeon membrane


Dimensions and Weight

 Dimensions:


Width: 22" x Height: 15" x Depth: 5.5"


Weight: 20 pounds

Illustrations/Diagrams/Instructions

Typhoon III Extreme Diagram
Typhoon III Extreme Installation Instructions
How to Change Filters
How to use Push In Quick Connect fittings
Trouble Shooting Guide
Additional Information

Chloramines guzzling (5) stage RODI

150 GPD R.O.D.I. Pure Water System

The Typhoon III Extreme 150





With TDS ALARM, DUAL PROBE IN-LINE EC and Hand Held digital TDS meters.


Where do I start describing this incredible value?

The membrane a real silica and TDS assassin, that produces 150 gallons per day!

The De-ionization filter then reduces the TDS to ZERO!

The 2.25 inch panel mountedpsi gauge!

 All of the TDS monitoring and alarm devices included!

Fully automatic shut off ASOV and float valve included.

This is the famous Typhoon III on steroids, bigger better, and with even more features.



TDS ALARM, DUAL PROBE IN-LINE TDS METER and HAND HELD DIGITAL TDS METER.

Extreme Accessories

With this awesome assembly of TDS devices you should never have any questions as to the quality of the water you are making or as to the feed water quality.

Standard features :

  • TW-1812 -150 Membrane produces 6.25 gallons per hour or 150 gallons per day.* (Stage 4)

  • Full size Color Changing mixed bed D.I. using Resin Tech DI resin.
    This is a refillable D.I. cartridge saving you huge money down the road. (Stage 5)

  • One micron pre-filter array (1-3) of the five stages.

  • Filters and the membrane are installed for you the day the unit ships out.

  • Totally automatic shut offsystem includes float valve and ASOV.

  • ASOV: This valve is activated by water pressure and shuts water to system off, no need for electrical devices.

  • Float valve keeps your Rubbermaid storage tank full and activates the ASOV.

  • The Fast flush membrane saving feature comes installed.

  • The D.I. water Bypass system ball valve & check valve installed.

  • The R.O. only sample port that our customers love to use for filling jugs of R.O. drinking water comes installed.

  • This (0-150) psi gauge is actually big enough to read and is mounted in the frame.

  • All clear filter housings (300) lbs. burst tested.

  • Senno Technology dual probe in-line digital TDS/EC meter dual reading dual probe.

  • PW TDS Alarm warns you when D.I. needs attention (red light).

  • Digital hand held TDS meter with auto-hold, auto-off super power saving for testing tap or potable water only 0-2999 PPM.




  The Five full stages of water treatment Included and installed.
  • Poly Pro sediment 10 micron
  • Granular Activated Catalytic Carbon in a refillable media housing.
  • Gem Coconut carbon block acid washed one micron.
  • The thin film composite Axeon 150 GPD membrane rated at 98% rejection of TDS.
  • The MIXED BED D.I. Chamber, full sized and filled with both cation and anion resins from Resin Tech.







The Typhoon III is at the very top of the Pure Water field, and this Extreme model is just that: EXTREME.

You get all of the features offered with the famous Typhoon III

Plus this incredible array of TDS monitoring devices:

  • The TDS alarm has a red light that flashes to remind you to do maintenance.
  • The hand held digital TDS meter is for testing your feed water quality and any other source of potable water.
  • The Dual probe dual reading digital in-line TDS/EC meter reads membrane and DI water TDS.
  • The frame mounted PSI gauge (0-150 psi).

With this combination of PSI gauge and TDS equipment you will never be at a loss about how the system is functioning.











Do not forget all of our fittings are quick connect, not some of them; ALL of them- Just push in and you are done.

No Teflon tape, glue, pipe dope, or wrenches needed.

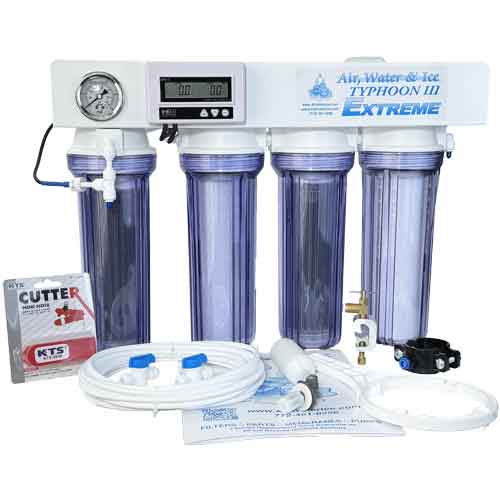

Of course you get our famous pro-installation hardware package:

  • SV-6: The sturdy clamp type supply valve. Not the next to impossible bow tie looking thing. (Or select the garden hose adapter)
  • Drain saddle: Our easy to install drain that clamps over you sink drain piping. Easy!
  • Plus 24 feet of top quality 1/4 inch tubing.
  • Filter wrench: For removing the filter sumps at filter change time.
  • Two in-line ball valves: One for making filter changes a snap. (Just install on the tap water supply tube.) The other is for manual shut off of the pure water, or as a spare for some other connection.
  • Your water pressure will determine the ultimate water production rate. Temperature also matters you need (77) degree water @ (65) psi to get the most from the membrane. The minimum operating pressure is (30) PSI
  • We build your unit in our warehouse using truckloads of component parts..
  • We are not drop shippers. Of course our units offer more value at better prices than our competition. We build our units from the ground up, we do our own order processing, and our own shipping. The drop shippers simply do not stand a ghost of a chance of matching us. Being in business since 1982 can't hurt either.
